The 1000M series is an industrial frequency converter customized according to specific customer needs, designed specifically for special industrial scenarios with compact space and high requirements for installation flexibility.
This series of industrial frequency converters adopts two modes of synchronous motor sensorless vector control (FMSVC) and V/F control, supporting a wide frequency range of 0-500Hz.

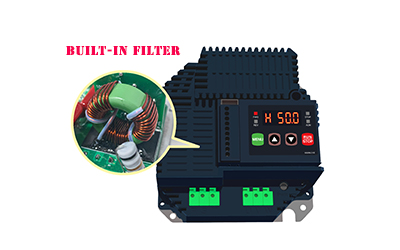

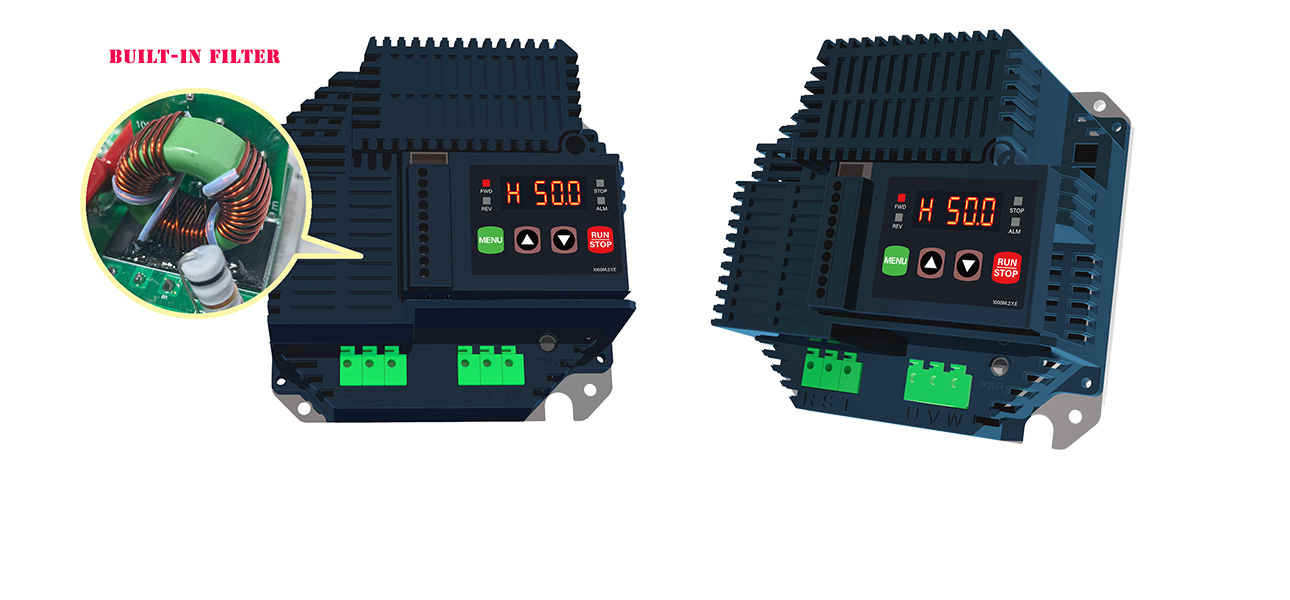

As a customized industrial frequency converter, the 1000M series adopts a compact design without a heat sink (requiring additional heat dissipation plates to be installed with the motor), and supports a detachable operation keyboard, greatly improving the flexibility of equipment integration. The product is equipped with an EMC filter and lightning protection function, effectively suppressing electromagnetic interference and enhancing the reliability of the system in complex power grid environments. Its protection level is IP20, and it needs to be installed inside electrical cabinets and other equipment to ensure the best operating environment.
Item | Specifications | |
Basic Functions | Maximum Frequency | Vector Control：0~500Hz V/F Control：0~500Hz |
Carrier Frequency | 0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics. | |
Input Frequency Resolution | Digital Setting： 0.1Hz Analog Setting： 0.01V corresponding maximum frequency ×0.1% | |
Control Mode | Open Loop Vector Control(SVC)； V/F Control | |
Startup Torque | G Type：0.5Hz/150%(SVC)； P Type：0.5Hz/100% | |
Basic Functions | Speed Range and Precision | 1：100(SVC)；±0.5%(SVC) |
Overload Capability | G Type：150% rated current 60s ；180% rated current 3s
| |
Torque Boost | 0.1%~30.0% | |
V/F Curve | Line Type、Square Type | |
Acc. / dec Curve | Straight line or S curve acceleration and deceleration mode Acceleration and deceleration time range between 0.0 to 500.0s. | |
DC Brake | DC Brake Frequency：0.00Hz to maximum frequency. Brake time： 0.0s to 36.0s | |
Multi-speed Running | It can realize at maximum of 2 segments speed running via the control terminal. | |
Built-in PID | It is easy to realize process-controlled closed loop control system. | |
Over-voltage/current Stall Control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. | |
Motor Over-temperature Protection | Acceptable motor temperature sensor input (PT100, PT1000) | |
Timing Control | Timing control function：set time range 0.0~6500.0Min | |
Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required. | |
Running | Running Command Source | Operation panel reference, control terminal reference |
Target Frequency Source | Digital reference, analog signal reference, multi-segment speed reference | |
Control Signal Input Terminal | 1 digital input； 1 analog input，support 0~10V、4~20mA、0~20mA、20~0mA、20~4mA and 10~0V signal | |
Control Signal Output Terminal | 1 relay output; 1 analog output，support 4~20mA signal(Only applicable to temperature sensors) | |
Environment | Using Place | Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
Altitude | 0~4000m；Derating use when more than 1000m (decrease by 1% per 100 meters) | |
Ambient Temperature | -20 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) | |
Humidity | Less than 95%RH, without condensing | |
Vibration | Less than 5.9m/s (0.6g) | |
Storge Temperature | －20℃~＋60℃ | |
IP Level | IP20 | |
Pollution Level | PD2 | |
Power Distribution System | TN, TT | |
